Description

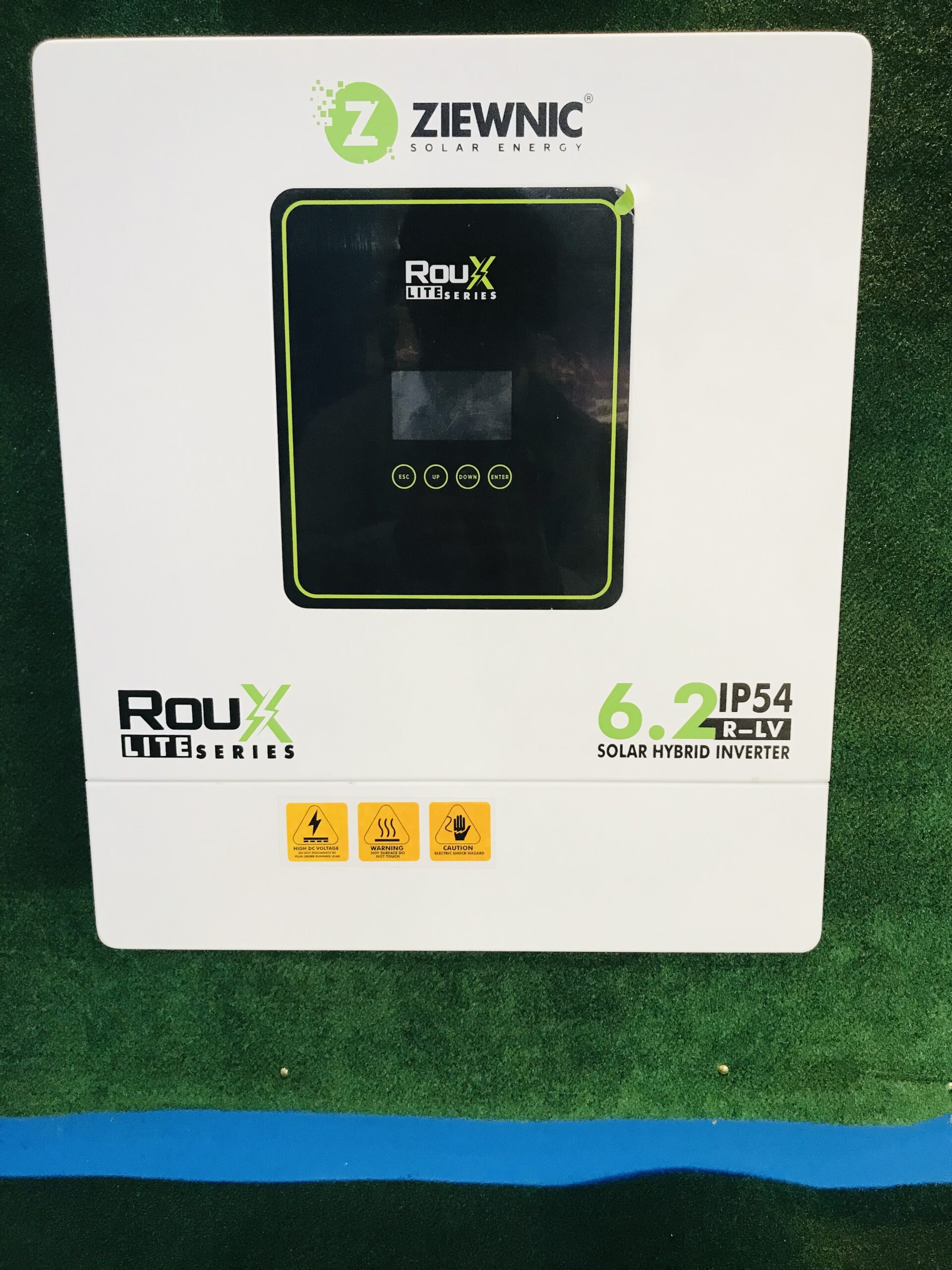

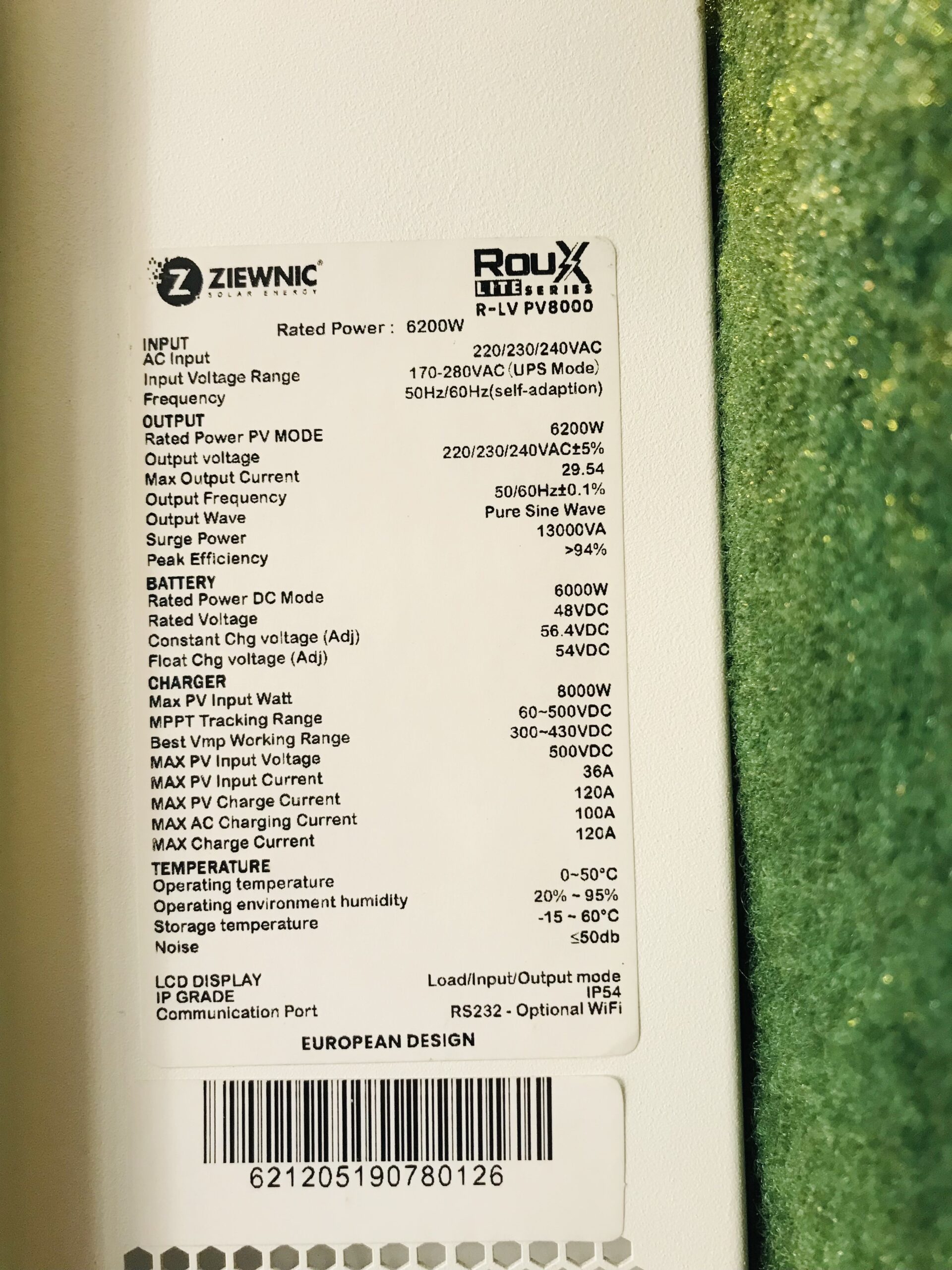

The label shows specifications for a *Ziewnic Solar Energy* inverter model *RouX Lite Series R-LV PV8000*. Key details include:

– *Rated Power*: 6200W.
– *Input*: AC 220/230/240 VAC, 50/60 Hz; voltage range 170–280 VAC in UPS mode.
– *Output*: 6200 W PV mode, pure sine wave, 220/230/240 VAC ±5%, max current 29.54 A, surge 13000 VA, efficiency >94%.
– *Battery*: DC mode 6000 W, 48 VDC, adjustable charge voltages 56.4 VDC (constant) & 54 VDC (float).
– *Charger*: Max PV input 8000 W, MPPT 60–500 VDC, max PV current 120 A, max AC charge 100 A.
– *Temperature*: Operates 0–50 °C, humidity 20–95%, storage –15 to 60 °C.
– *Protection*: IP54, LCD display, communication port RS232 (optional WiFi).
– *Design*: European design,
