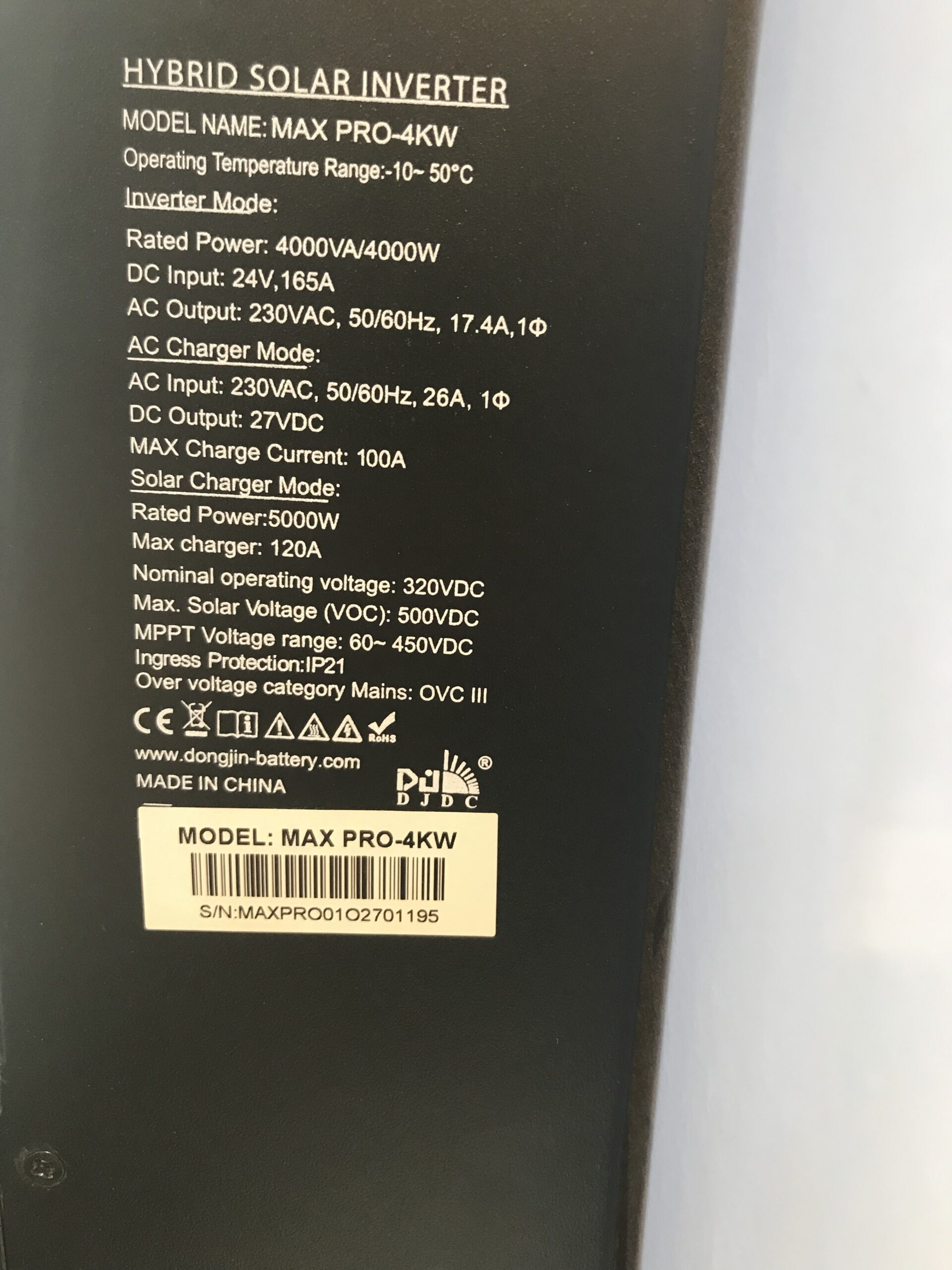

Description

1. *Operating Temperature Range*: -10°C to 50°C.
2. *Inverter Mode*:
– Rated Power: 4000VA / 4000W.
– DC Input: 24V, 165A.
– AC Output: 230VAC, 50/60Hz, 17.4A, 1φ.

3. *AC Charger Mode*:
– AC Input: 230VAC, 50/60Hz, 26A, 1φ.
– DC Output: 27VDC.
– Max Charge Current: 100A.

4. *Solar Charger Mode*:
– Rated Power: 5000W.
– Max charger: 120A.
– Nominal operating voltage: 320VDC.
– Max. Solar Voltage (VOC): 500VDC.
– MPPT Voltage range: 60–450VDC.

5. *General*:
– Ingress Protection: IP21.
– Over voltage category Mains:
